5.3 Cu. Ft. Smart Freestanding Electric Range with Convection Cooking Modes

Convection Cooking Modes

• help you get consistent results with optimal heating temperatures for juicy roast meats with No Preheat Slow Cook, restaurant-style pizza with Fresh Pizza Mode, No Preheat Air Fry for crispy game day wings, and more.

Smart Appliance

• lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands-on or hands-off.* The KitchenAid™ App lets you conveniently preheat, proof, bake, and roast, plus store your favorite recipes for easy reference. *Wi-Fi & App required. Features subject to change. Amazon Alexa capabilities available in U.S. only. Google Assistant capabilities available globally. For details and privacy info, visit KitchenAid.com/Connect (U.S.) or KitchenAid.ca/Connect (Canada). Alexa, Google and certain other trademarks are owned by their respective companies.

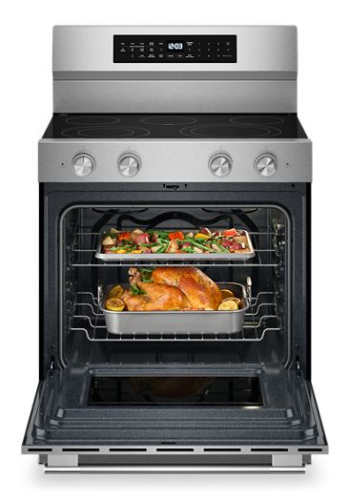

5.3 Cu. Ft. Capacity with Rapid Preheat

• maximizes your cooking potential with our spacious oven, designed to handle entire meals like a full turkey and sides simultaneously. Featuring an optimized oven design, it reaches 350°F in under 8 minutes*, reducing wait times and using up to 15% less energy.**

Even-Heat™ True Convection

• features a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts, and flavorful caramelized vegetables.

Edge-to-Edge Glass Cooking Surface

• subtly integrates with your countertop, allowing you to move pots and pans easily from your counter to the cooking surface. Its clean, minimalist lines enhance your kitchen's design.

Steam Clean & Self-Cleaning Cycles

• keep your oven clean with two distinct cycles. The Steam Clean Cycle, perfect for quick, routine maintenance, helps loosen cooked-on food in under an hour. Simply add water to the bottom of the oven and wipe down after the cycle. For a deeper clean, the high-temperature Self-Clean Cycle powers through baked-on spills, leaving the oven cavity clean with just a final wipe-down.

5 Cooking Elements Including a Warm Zone

• provides five independent cooking surfaces that allow you to do more on your range. Two 6 to 9-inch dual cooking zones and two standard 6-inch elements allow you to cook more at once, while a dedicated warm zone keeps dishes at the perfect serving temperature.

No Preheat Air Fry Mode

• lets you save time and skip preheating while you get crispy and browned food while using less oil than traditional deep frying. Dishwasher-safe basket sold separately.

Fresh Pizza Mode

• helps you create homemade, restaurant-style pizzas from the comfort of your kitchen. This setting cranks the heat to 550°F for delicious results.

No Preheat Reheat

• brings yesterday's meal back to life quickly, without the need for a microwave.

No Preheat Slow Cook

• seal in flavors of juicy roasts, stews, and braised foods with No Preheat Slow Cook for savory comfort meals without the need for a countertop slow cooker.

Air Baking

• helps you craft delicious cakes, muffins, last-minute bake sale treats, and more, with even results on multiple racks.

Air Roast

• seals in the flavors and juices of meat and poultry for a hearty, comforting meal.

Air Broil

• melts, chars and sears quickly using intense air-driven heat to create toasted treats, melty grilled cheese and more.

Proof Mode

• is designed to maintain a low temperature and provides ideal conditions to properly activate yeast, allowing your baked goods to rise.

PrintShield™ Finish

• resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

LCD Glass Touch Controls

• offer an intuitive, easy-to-use touch screen experience.

6-Inch Warm Zone

• keeps dishes at the perfect serving temperature while you finish preparing the rest of your meal.

Storage Drawer

• adds additional storage space that’s perfect for pots, pans and baking sheets.

Sabbath Mode

• to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven can be set to Sabbath baking and will maintain a constant temperature with lights, displays and tones disabled.

Energy Star® Certified

• to exceed government standards for energy efficiency, supporting sustainability and helping to save money on utility bills.

Proudly assembled in Tulsa, Oklahoma, U.S.A.

• we take pride in building strong, reliable appliances for your home. These ranges are proudly assembled by hard-working employees in Tulsa, Oklahoma.

-
Air Fry Basket Included	No
Console Language	English
Energy Star® Qualified	Yes
Literature Language	English; French; Spanish
Range Features	Smart Appliance

Certifications
ADA Compliant	No
CUL	No
Star K Certified	Star K Certified
UL	Yes
Prop65	Standard

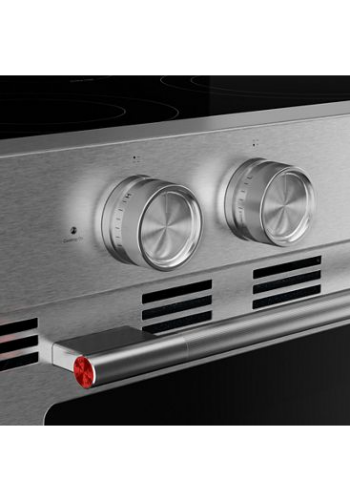

Controls
Display Color	White

Cooktop Details
Cooktop Control Knob Type	Plastic
Cooktop Control Location	Backguard
Cooktop Control Type	Knobs
Cooktop Surface Material	Glass
Griddle Included	No
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes

Details
Air Fry	Yes
Automatic Convection Conversion Temperature Adjust	No
Cooktop Configuration	All Burners
Delay Clean	No
Fuel Type	Electric
Installation Configuration	Freestanding
Oven Automatic Shut-Off	Yes
Oven Configuration	Single Oven
Oven Light Switch Location	Oven Control
Oven Selections	Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Language Conversion; No Preheat - Frozen; Rapid Preheat; Reheat; Sabbath Mode; Start Time; Stop Time; Timer
Power On Indicator Light	Yes
Power Outage Compatible	Yes
Range Configuration	Freestanding
Range Drawer Type	Storage Drawer
Range Type	Freestanding

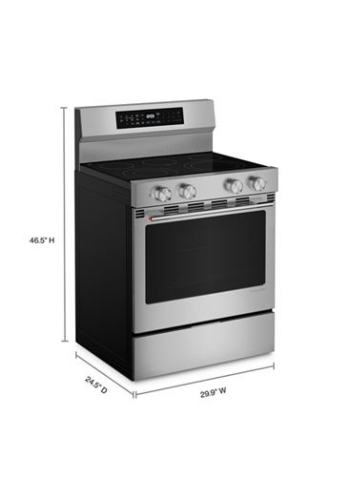

Dimensions
Adjustable Height	Yes
Cutout Depth	24
Cutout Height	36
Cutout Width	30
Depth Closed Excluding Handles	26.5
Depth Closed Including Handles	28.1
Depth Excluding Doors	24.5
Depth With Door Open 90 Degree	46.8
Oven Interior Depth	19.7
Oven Interior Height	19.2
Oven Interior Width	24.2
Carton Depth	29 inches
Carton Height	49 inches
Carton Width	32 inches
Gross Weight	192 pounds
Net Weight	176 pounds

Electrical
Power Cord Included	No

Element/Burner Details
Center Rear Element-Burner Power	100W
Center Rear Element-Burner Size	6in.
Center Rear Element-Burner Type	Warming
Cooktop Element Style	Radiant
Left Front Element-Burner Power	3000W
Left Front Element-Burner Size	9in./6in.
Left Front Element-Burner Type	Dual
Left Rear Element-Burner Power	1200W
Left Rear Element-Burner Size	6in.
Left Rear Element-Burner Type	Single
Number Of Cooking Element-Burners	5
Right Front Element-Burner Power	3000W
Right Front Element-Burner Size	12in./9in.
Right Front Element-Burner Type	Dual
Right Rear Element-Burner Power	1200W
Right Rear Element-Burner Size	6in.
Right Rear Element-Burner Type	Single

Export Details
Export Packaging	No

Exterior Details
Door Type	Glass
Oven Control Knob Type	N/A
Oven Control Location	Backguard
Oven Control Type	Electronic Touch
Oven Window Size	Extra Large
Handle Color	Stainless Steel
Handle Material	Metal
Handle Type	Reach Through Handle
Knob Color	Stainless Steel
Knob Type	Weighted-Plastic

Oven Details
Bake Element Power	2,400 W
Broiler Element Power	3,400 W
Broiler Location	Top Center
Convection Element Type	True Convection
Convection Functions	Air Baking; Air Broil; Air Fry; Air Reheat; Air Roast; Bake Broil; Bake, Broil, and Roast; Fresh Pizza; Keep Warm; No Preheat; Proof; Roast; Slow Cook; Warm Zone
Door Lock	Yes
Door Removable	Yes
Hidden Bake Element	Hidden
Number Of Oven Lights	1
Number Of Oven Racks	2
Number Of Rack Guides	5
Oven Cleaning Type	Self Clean + Steam Clean
Oven Cooking System	True Convection
Oven Light Type	Halogen
Oven Rack Front Material	Metal
Oven Rack Guide Type	Embossed
Oven Rack Type	Max Capacity; Standard
Temperature Probe	No
Temperature Sensor	Yes
Interior Color	Blue

Smart Compatibility
Connectivity	Amazon Alexa; Android; Google Assistant; Nest; iOS
Smart Appliance	Yes
Works With	App; Bluetooth; Remote Access; Voice Controlled; WiFi
