7.4 cu. ft. Ultra Large Capacity Smart Front Load Electric Dryer with TurboSteam, AI Sensing and Hybrid Electronic Controls with LCD Display
Model # DLEX5800A
Model # DLEX5800A
7.4 cu. ft. Ultra Large Capacity Smart Front Load Electric Dryer with TurboSteam, AI Sensing and Hybrid Electronic Controls with LCD Display
Product Details
ThinQ Offer
- Get an extra 1-year limited warranty (up to $185 value) through 12/31/25. Terms apply?
- 7.4 cu. ft. Ultra Large Capacity lets you clean larger loads
- Built-in intelligence takes out the guesswork—AI Sensor Dry™ selects optimal dry settings
- SteamFresh™ Cycle with TurboSteam™ Technology refreshes clothes in between washes
- Pet Care Cycle helps reduce odors in pet clothes, toys and blankets so they come out smelling fresh
- Dial controls get a modern upgrade with an intuitive touch panel, LCD display and sleek design
- Get the ThinQ® app to access smart functions, ThinQ Care™ alerts and download new ThinQ UP™ features
- FlowSense® Duct Clogging and Lint Filter Indicators help keep dryer clean, efficient and safe
| DIMENSIONS | |
| Carton (WxHxD) | 29" x 43 1/4" x 31 1/8" |
| Weight (Product) | 120.5 lbs |
| Weight (Carton) | 127.1 lbs |
| Depth with Door Open | 51 3/8" |
| Product (WxHxD) | 27" x 39" x 29 3/4" |
| Pedestal (WxHxD) | 27" x 13 5/8" x 28" (43 7/8" D with door open) |
| DRYER PROGRAMS | |
| Manual Dry Times | 10 min ~ 100 min (5 min incremental) |
| Temperature Settings | High, Low, Medium, Med Low, Med High |
| Drying Levels | Damp Dry, Less Dry, More Dry, Normal Dry, Very Dry |
| Dryer Options | Low Static, Signal, Smart Diagnosis, Steam, Damp Signal, Drum Light, Remote Start, Wi-Fi, Energy Saver, "More Cycles" Edit, Wrinkle Care |
| Dryer Programs | AI Dry, Activewear, Blanket Refresh, Easy Ironing, Jeans, Large Load, Overnight Dry, Power Dry, Rack Dry, Quick Dry, SteamFresh™, Timed Dry, Towels, XL Load, Wrinkle Prevention, Air Dry, Perm. Press, Pet Care, Low Temp Dry, SteamSanitary??, Super Dry, Bedding, Delicates, Heavy Duty, Normal, Small Load |
| Dry Modes | No |
| No. of Dryer Options | 11 |
| No. of Dryer Programs | 26 |
| ENERGY | |
| CEF | 3.94 |
| ENERGY STAR® Certified | Yes |
| FABRIC CARE FEATURES | |
| AI Sensor Dry™ | Yes |
| Sensor Dry | Yes |
| Precise Temperature Control with Variable Compressor | No |
| Precise Temperature Control with Variable Heater | Yes |
| LAUNDRY APPLIANCE CAPACITY | |
| Capacity | 7.4 cu. ft. |
| LAUNDRY APPLIANCE CONVENIENCE FEATURES | |
| Vent Type | Vented |
| Venting Option | 4 Way Venting |
| Control Lock | Yes |
| 4 Adjustable Legs | Yes |
| End of Cycle Signal | Yes |
| 3 Minute Installation Check | Yes |
| Reversible Door | Yes |
| FlowSense™ Duct Clogging Indicator | Yes |
| Drum Light | Yes |
| Remaining Time Display/Status Indicator(s) | Yes |
| Wrinkle Care Option | Yes |
| LAUNDRY APPLIANCE THINQ® SMART FEATURES | |
| SmartDiagnosis™ (v3.0) | Yes |
| ThinQ Care™ | Yes |
| Wifi | Yes |
| NFC Tag On | Yes |
| Energy Monitoring | Yes |
| MATERIALS AND FINISHES | |
| Door Cover | Tempered Glass Door |
| Cabinet | Painted Steel |
| All Available Colors | Alpine White (A), Graphite Steel (V) |
| Aluminized Alloy Steel Drum | Yes |
| NeveRust™ Stainless Steel Drum | No |
| OPTIONS/ACCESSORIES | |
| LP Conversion Kit | N/A |

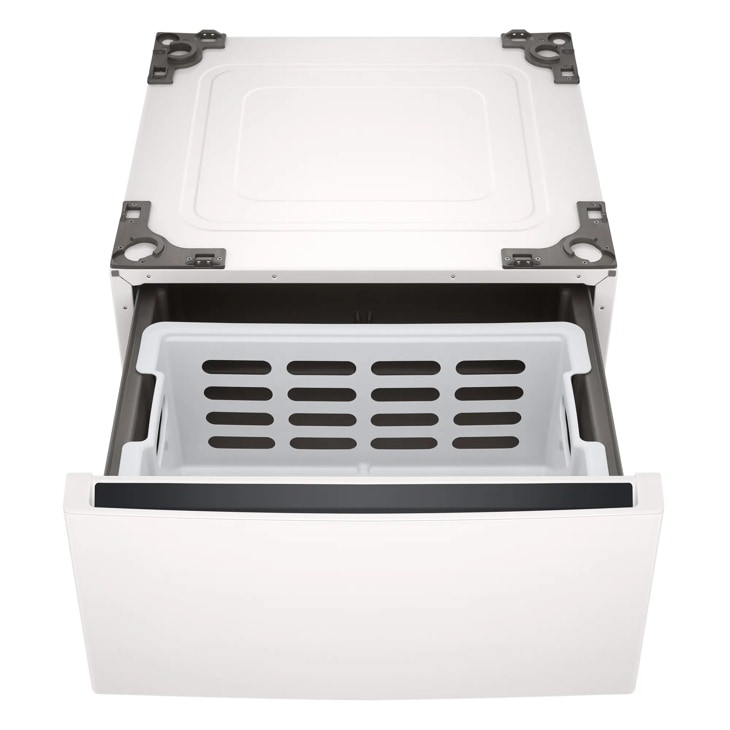

| Pedestal | WDP6A |
| Side Venting Kit | 383EEL9001B |
| POWER SOURCE | |
| Dryer BTU Rating | N/A |
| Dryer Electrical Requirements | 120/240V, 60Hz, 26A (120/208V, 60Hz, 23A) |
| Ratings | CSA Listed |
| Dryer Power Source Type | Electric |
| SUMMARY | |
| Series | LG |
| Product Color | Alpine White (A) |
| Type | Front Load Dryer |
| Matching Washer | WM5800HAA |
| Hard Buttons | No |
| Steam | Yes |
| Dial-A-Cycle™ | Yes |
| Touch Buttons | Yes |
| WARRANTY & UPC | |
| Drum | 3 Years |
| Parts and Labor | 1 Year |
| UPC | 195174126370 |
